Haier Biomedical Lab Grade Ultra Low Temperature Freezer With Touch Screen LCD - UT20T
Haier Biomedical
Lab Grade Freezer Ultra Low Temperature
Model: DW-86L578ST
Part #: UT20T

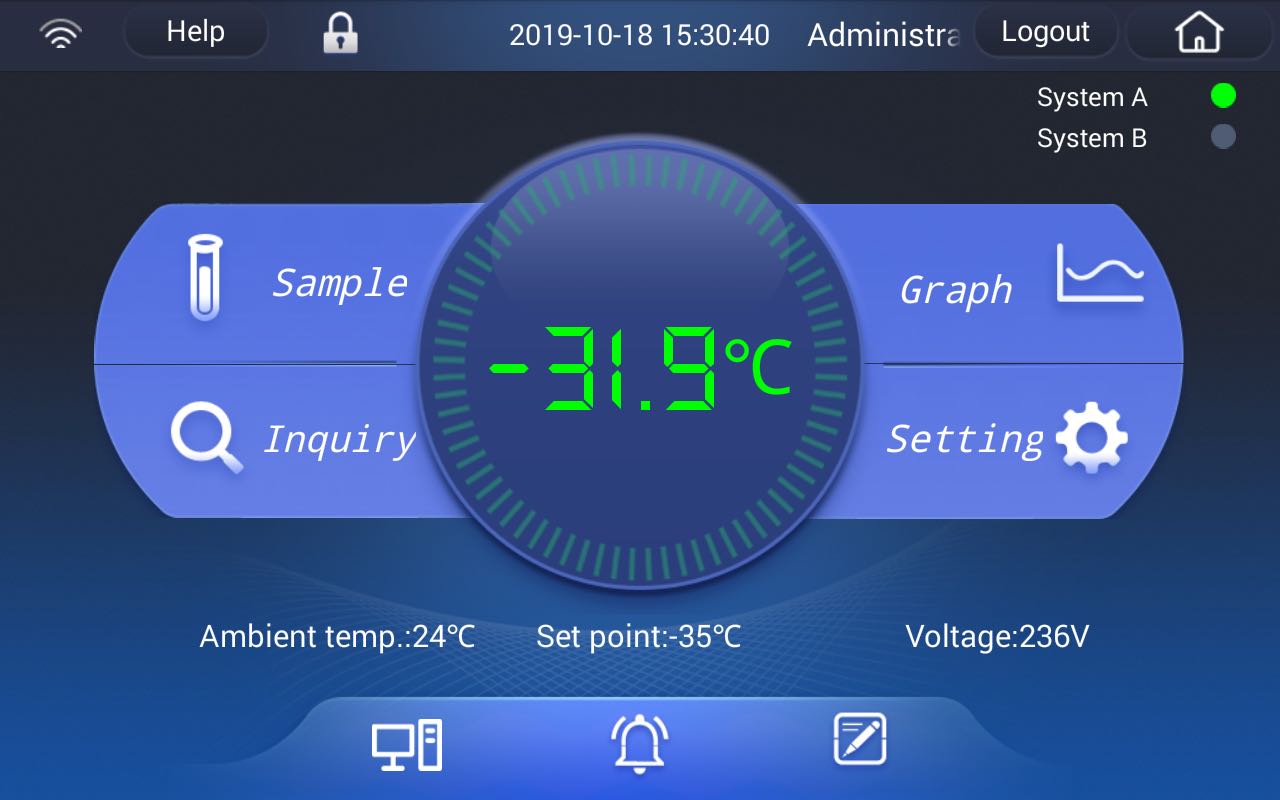

Display: Touch Screen LCD
Power Supply: 115V/60hz
Interior Dimension (W x D x H)
620mm x 716mm x 1310mm
24.4in x 28.2in x 51.6in
Exterior Dimension (W x D x H)
895mm x 998mm x 1980mm
35.2in x 39.3in x 78.0in
| Technical Data | Cabinet Type | Upright |
| Cooling Type | Direct cooling | |
| Defrost Mode | Manual | |
| Sound Level(dB(A)) | 52 | |
| Performance | Cooling Performance(℃) | '-86 |
| Temperature Range(℃) | -40~-86 | |
| Control | Controller | Microprocessor |
| Display | Touch Screen LCD | |
| Electrical Data | Power Supply(V/Hz) | 115V/60hz |
| Power(W) | 1400 | |
| Electrical Current(A) | 14 | |
| Dimensions | Capacity(L/Cu.Ft) | 578/20.4 |
| Net/Gross Weight(approx) | kg 325/355 lbs 716.5/782.6 |
|
| Interior Dimension(W*D*H) | mm 620*716*1310 in 24.4*28.2*51.6 |
|
| Exterior Dimension(W*D*H) | mm 895*998*1980 in 35.2*39.3*78.0 |
|
| Packing Dimension(W*D*H) | mm 950*1055*2150 in 37.4*41.5*84.6 |
|
| Power Failure | Y | |
| High/Low Voltage | Y | |
| Sensor Error | Y | |
| Low Battery | Y | |
| High Ambient Temperature | Y | |
| Door Ajar | Y | |
| Accessories | Caster | Y |
| Foot | Y | |
| Porthole | Y/2 | |
| Shelves/ Inner Doors | 3/4 | |
| USB Interface | Y | |
| Remote Alarm | Y | |
| 5V Power Supply Port | Y | |
| Temperature Chart Recorder | Optional | |
| RS232/485 Port | RS485 Port standard | |
| CO2 Backup System | Optional | |
| LN2 Backup System | Optional | |
| Other | Certification | UL |
