30F29 – DW-30L818

Haier Biomedical

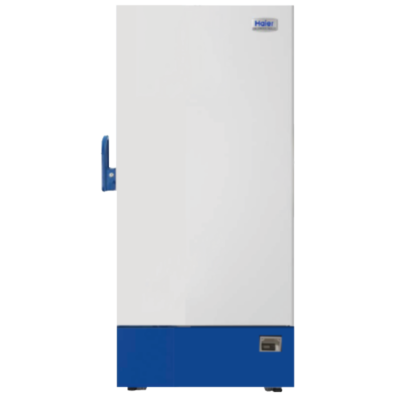

-30℃ Biomedical Freezer 30F29 – DW-30L818

Model: DW-30L818
Part #: 30F29
Cabinet Type: Upright
Climate Class: 4
Cooling Type: Direct cooling
Defrost Mode: Manual
Temperature Range(℃): -10~-30℃(-35℃ at 25℃ Ambient Temperature)
Capacity(L/Cu.Ft): 818/28.9

Interior Dimension (W * D * H)
29.5” x 29.7” x 57.5”

Exterior Dimension (W * D * H)
38.9” x 37.4” x 77.9”

Brochure – 30F29 – DW-30L818

Description

-30℃ Biomedical Freezer DW-30L818

Upright -30°C, 818L Biomedical freezer with evaporator-shelf cooling for uniform temperature distribution. Environmentally-friendly hydrocarbon refrigerants. Microprocessor controller, LCD display, alarm functions, lock and access port.

Product Features:

Energy Efficient Hydrocarbon (HC) Refrigeration System
Optimised refrigeration system, utilising high-efficiency HC compressor significantly reduces energy consumption.

Greener by Design
HC refrigerants are natural non-toxic and more environmentally friendly than HFC refrigerants. This alongside the HC compressor technology and LBA foamed polyurethane insulation layer, make this unit greener and in-line with European ROHS directives and environmental protection guidelines.

Large Capacity, Superior Uniformity

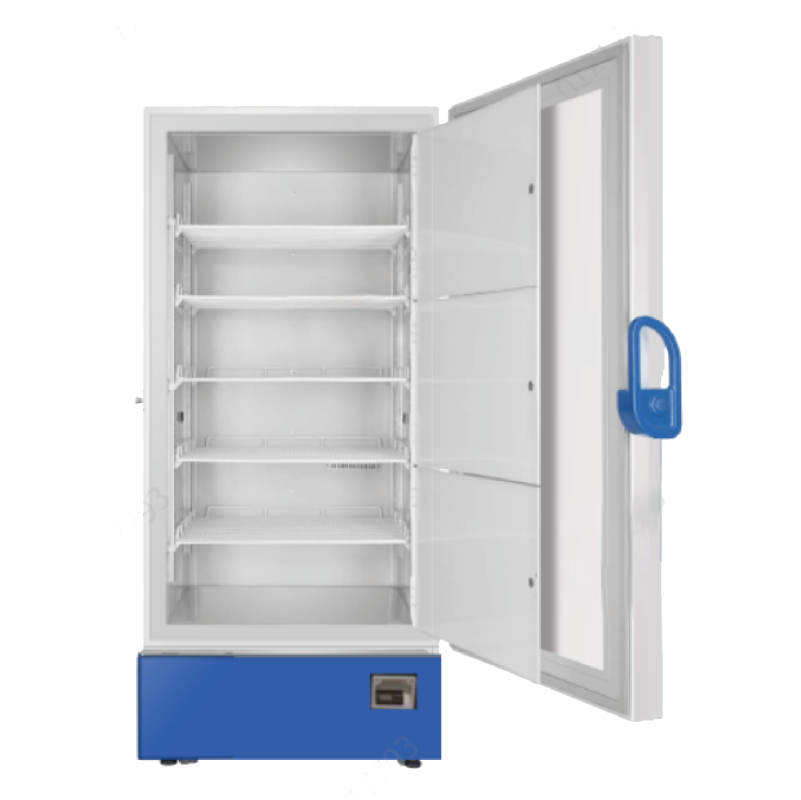

Built-in evaporator for faster cooling speed and uniform temperature throughout the cabinet, ±3℃. Large internal space with adjustable shelves for fiexible configuration.

Low Noise
Optimised system and cabinet design ensures low noise emissions, less than 44dB.















-30℃ Biomedical Freezer DW-30L818

Technical Data:
Cabinet Type Upright
Climate Class4
Cooling TypeDirect cooling
Defrost ModeManual
RefrigerantHC
Noise((dB(A))44
Performance:
Cooling Performance(C)-30
Temp Range (C)-10~-30C (-35C at 25C Ambient Temperature)
Control:
ControllerMicroprocessor
DisplayLCD
Electrical Data
Power Supply(V/HZ)220~240/50
Power(W)400
Electrical Current(A)3.2
Capacity(L/Cu.Ft)818/28.9
Dimensions:
Net/Gross Weight(approx)205/235 kg
463/529.1 lb
Interior Dimension(W*D*H)29.5” x 29.7” x 57.5”
Exterior Dimension(W*D*H)38.9” x 37.4” x 77.9”
Accessories
CasterY
FootY
Test HoleY (2)
Shelves/ Inner Doors5/3
USB InterfaceOptional
5V Power Supply PortN
Temp RecorderOptional
RS485 PortCE
