Dual Access Animal Containment Workstations

Cage cleaning and bedding disposal procedures are now simpler, safer and more productive with the Bedding Disposal Workstation. Specifically designed for the animal research laboratory, the mobile workstation protects personnel and the lab environment from exposure to allergens and unpleasant odors. The industry-exclusive hydraulic height-adjustable stand allows the work surface height to be adjusted to user preference therefore minimizing strain during repetitive operations. An integrated waste container enables direct disposal of waste items within the work zone.

Download a PDF of this product.

Categories: , ,

Description

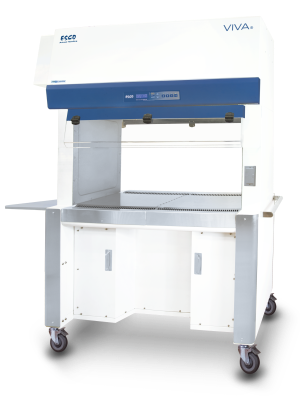

The VIVA Dual Access Animal Containment Workstation is a modified laminar flow clean bench with unique air-balancing properties to provide personnel and animal protection during handling procedures. For maximum efficiency and flexibility during operations, the VIVA adopts an open access concept that increases ease of insertion and removal of cages from the work zone. Operator comfort is ensured with adjustable height control and an ergonomically sloped sash. In addition, the unit is based on caster wheels for maneuverability and uses the Sentinel microprocessor and pressure gauges for easy air-flow monitoring and control.

  • Latest generation DC ECM blower provides stable airflow with low energy consumption.
  • Lowest noise dual access animal workstation in the world at 53 dBA in open field condition.
  • The only dual access animal workstation in the world with leg room on both sides.
  • Isocide™ anti-microbial coating protects operators and animals.



Key Benefits:

  • High Energy efficiency with advanced DC ECM blower, results in substantial long term savings.
  • 99.9% ELISA-verified allergen containment for operator and environment protection.
  • Operators and animals are protected via laminar flow and air-balancing properties of the system.
  • Exceptional Operator Comfort though low noise and dual legroom.
SpecificationsGAC-D4-AGAC-D5-A
External Dimensions
(W x D x H)		52.8" x 30" x 77.2" min height
52.8" x 30" x 88.4" max height		64.7" x 30" x 77.2" min height
64.7" x 30" x 88.4" max height
Internal Dimensions
(W x D x H)		43.3" x 18.3" x 22.2"55.3" x 18.3" x 22.2"
Downflow Velocity0.24 m/s (47 fpm)0.24 m/s (47 fpm)
Pre-FilterDisposable and non-washable polyester fibers with 85% arrestence / EU3 ratedDisposable and non-washable polyester fibers with 85% arrestence / EU3 rated
ULPA Filter Typical Efficiency>99.999% for particle size between 0.1 to 0.3 microns, per IEST-RP-CC001.3>99.999% for particle size between 0.1 to 0.3 microns, per IEST-RP-CC001.3
Sound Emission per EN 12469*53 dBA54 dBA
Fluorescent Lamp Intensity at Zero Ambient1725 lux (160 foot candles)1525 lux (142 foot candles)
Construction, Main Body 1.5 mm (0.06") 16 gauge EG Steel with Isocide Oven-Baked Epoxy-Polyester Powder Coated Finish1.5 mm (0.06") 16 gauge EG Steel with Isocide Oven-Baked Epoxy-Polyester Powder Coated Finish
Electrical110-130 VAC, 60 Hz, 1Ø110-130 VAC, 60 Hz, 1Ø
