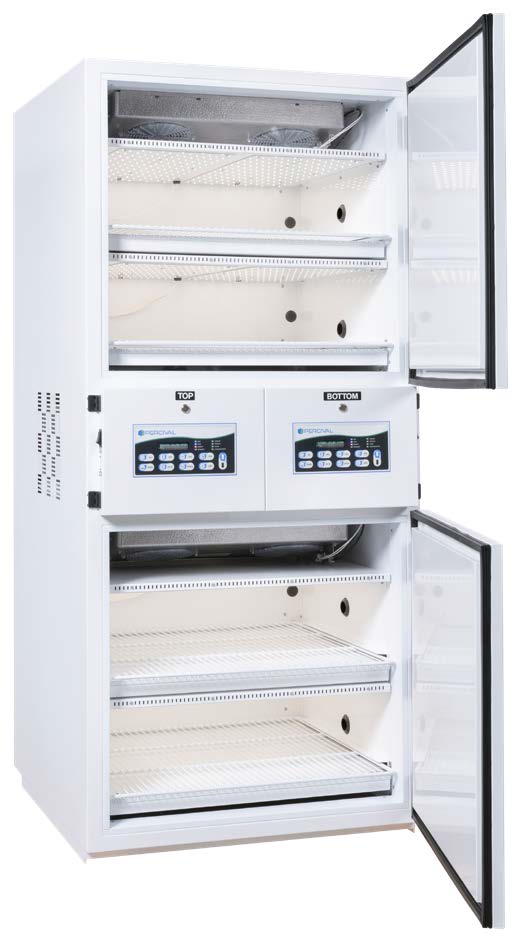

Description
Applications
-Provides capability to have simultaneous experiments conducted with different photopheriods, temperature or other environmental parameters
-Specifically designed for plant cell culture
-Unique design of air diffuser with slow vertical airflow, fixed lamp bank and slide-out shelves helps to eliminate condensation on Petri dish lids
-Many other applications exist for this product
Percival’s IntellusUltra Controller
–Percival Scientific has built a reputation of providing flexible, customized options for research scientists around the world. We have taken the philosophy to the next level with our improved IntellusUltra controller. Now choose from the levels of functionality that meet your research needs.
Lighting System
- Two tiers of lighted shelving lit PetriClear LEDs
- Intensity programmable up to 170 µmoles/m2/s of light irradiance measured @ 6″ from LEDs
- Programming and control of the lighting is done via IntellusUltra real time controller
- Dimmable between 10-100% output
- New SciWhite + Infrared technology lighting system designed to prevent condensation from forming on petri dishes
Airflow/Circulation
-Conditioned air circulates through a rear wall duct and is picked up by a specially designed fixed air diffuser located at the bottom of each tier (air is then delivered vertically upward at a slow speed through each shelf)
-Air diffuser insulates shelf level experiments from heat generated by underlying light fixture (this design minimizes condensation on dish lids)
Cabinet Construction
-Interior constructed of 22-gauge electro-zinc plated steel
-Exterior constructed of 18-gauge exterior electro-zinc plated steel
-Welded seams and joints on outer and inner shells
-Inner shell supported by non-compressing/non-thermal conducting material locking inner liner in place without a metal-to-metal bond to outer case
-Chamber is completely self-contained
-Overall wall thickness is 2”
-One 1 1/4” diameter access port on R.H. wall (one per compartment)
-Chamber floor equipped with floor drain and hose assembly
– Contains caster assembly and adjustable leveling legs to compensate for floor unevenness in the lab
Insulation
-Woodless construction using CFC free insulation (overall wall thickness is 2”, ample insulation for maintenance of stated temperature range)
Doors
-Each door opening 29.2″ x 27.8″ providing full access to chamber interior (magnetic gasket provides a tight seal to door frame)
Interior Space
-Total 14.6 cu.ft. with work area of 10.8 sq.ft. provided on two shelves per compartment
Shelving
-Two tiers per compartment of white epoxy coated steel wire shelving (each shelf is 27″D x 28.8″W)
-Shelves side in and out easily on stainless steel rail assemblies
-Maximum growing height is 7.5″
Finish
-Interior and exterior painted with high reflective, environmentally friendly, high temperature baked white powder coating
Refrigeration
-Twin condensing unit (this continuous running condensing unit ensures precise temperature control by alternating cycling refrigerant and hot gas to coil; this also prolongs life of compressor, and eliminates risk of ice buildup in coil)
-Solenoid valves have extended stem for quiet and long life operation
-Ceiling mounted evaporator coils incorporate dual air circulation fans in aluminum housing (heat rejection to ambient in standard chamber = 5000 BTU/hr)
Temperature Range
– 10-44C (+/- 0.5C) with lights on and 2-44C (+/- 0.5C) with lights off
Temperature Safety Limit Controls
-Experiment Protection: Adjustable high and low temperature controls, audible alarms, and visual indicators provided
-Controls shut down all power to chamber, activating alarms (when the temperature returns to the normal range the system will automatically reset)
Convenience Receptacles
-One 115/1/60 convenience receptacle provided inside each compartment
Electrical Requirements
-Consult Geneva Scientific for electrical requirements and amperage draw.
Options
-Additive Humidity Control with Sensor
-Dehumidifier with Sensor
-IntellusUltra Connect
-Android-Based Touch Screen
-CO2 Enrichment Package
-Door with Observation Window with Cover
-Door with Fresh Air Ports
-Self-Contained Water-Cooled Condensing Unit
-Dry Alarm Contacts
-Dimmable Lighting
-Extended Temperature Ranges
-External Drip Pan Assembly
-LED Lighting in Lieu of Fluorescent Lamps
-Please contact us for more optional items
***Specifications subject to change.***
